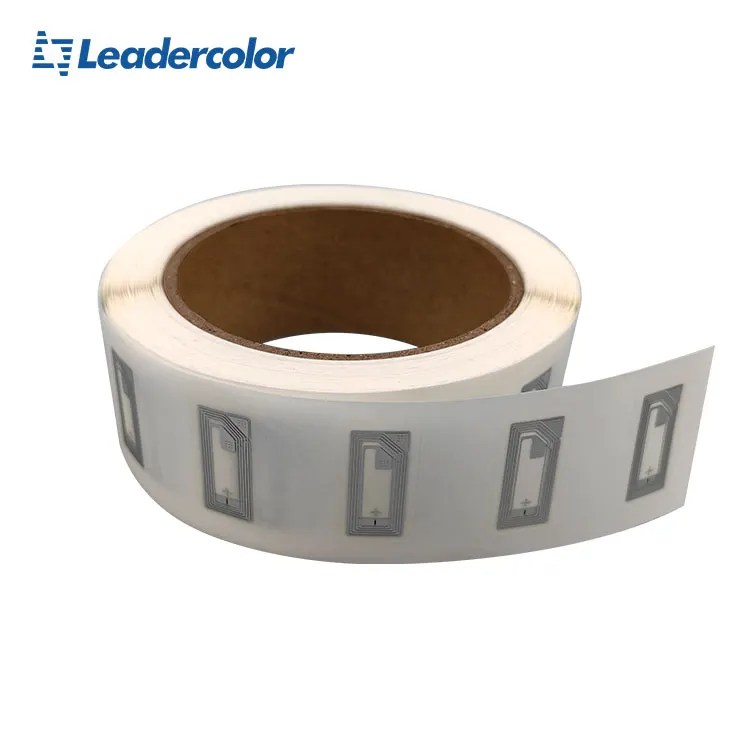

LDR-H8 UHF RFID Inlay
LDR-H8 UHF RFID Inlay
Short Description:
Item No.:LDR-H8
Quick Details
LDR-H8 UHF RFID inlay is complaint with EPC C1G2 (ISO18000-6C) standard and it fits for all 860-960mhz UHF RFID readers and antennas. It is mostly used for board range of rfid tagging applications, such as, document management, manufacturing, digitalstorage andotherhigh-endproducts traceability and security management.
Applications
1. Supply Chain Management
2. Distribution Logistics
3. Product Authentication
4. Asset Inventory and Tracking
5. Baggage Handling and Tracking
6. Item Level Tagging
UHF RFID Inlay
RFID Parameter | |
Model No. | LDR-H8 |
Type | Passive UHF RFID Inlay |
Protocol | ISO/IEC 18000-6C, EPC Class1 Gen2 |
Frequency | Worldwide 840-960Mhz, US 902-928mhz, EU 865-868Mhz |
Chip | NXP U Code 8(Customized) |
Memory | EPC 128bits/TID 48bits/User 0bits |
Read&Write | Supported |
Read Range | 1-12cm adjustable(reader and environment dependent) |
Data retention | 10years |
Programming Cycles | 100,000 cycles |
Anti-collision | Yes |
Physical Parameter | |
Size | 70X14mm |
Substrate Material | Transparent Release Film |
Antenna Material | Aluminum Etching |
Installation | Self adhesive |
Operating temperature | -50~+80°C |
Operating humidity | 20%~90%RH |
Roll diameter | Inner 3inches |
Package | 5000pcs/roll(Customized) |
Customized Service | Optional Chips: MIFARE® Series, NTAG® Series Optional Materials: Coated Paper; PVC Paper; Synthetic PP Paper; PET Paper; Optional Glues: Standard Glues; 3M Glues; Strong Glues; Optional Printing: Offset Printing; Barcode Printing; UID Number Printing; UV Printing Optional Crafts: UID encoding; Optional Sizes: Smaller or Bigger |
Yes, the size can be customized according to customer’s requirement, and indifferent length and width.
Yes, we are so glad to send you some current samples for your reference. The samples are free, you just need to handle the delivery cost.
Yes, you can choose the material and chip what you want.
Our minimum order is 500~1000pcs.
Yes, please send the files in “AI.”or “CDR” format with “greate outlines” to us by email.
The fact is that the colors shown on the monitor we saw and the color printed in actual products have differences. For the best quality effect, you may provide us a match sample or the specify Pantone colors. We match the colour over 90% which is much more above the industry average of 80%
It depends on the shipping method chose, the white tag, Normally, the tags will be sent out within 7~15 days after payment is completed.
The trade assurance order is recommended. Alibaba platform will protect your orders from payment to delivery, or by T/T, Paypal and so on.
Yes, we provide quality assurance for 1 years, except the physical damage.
