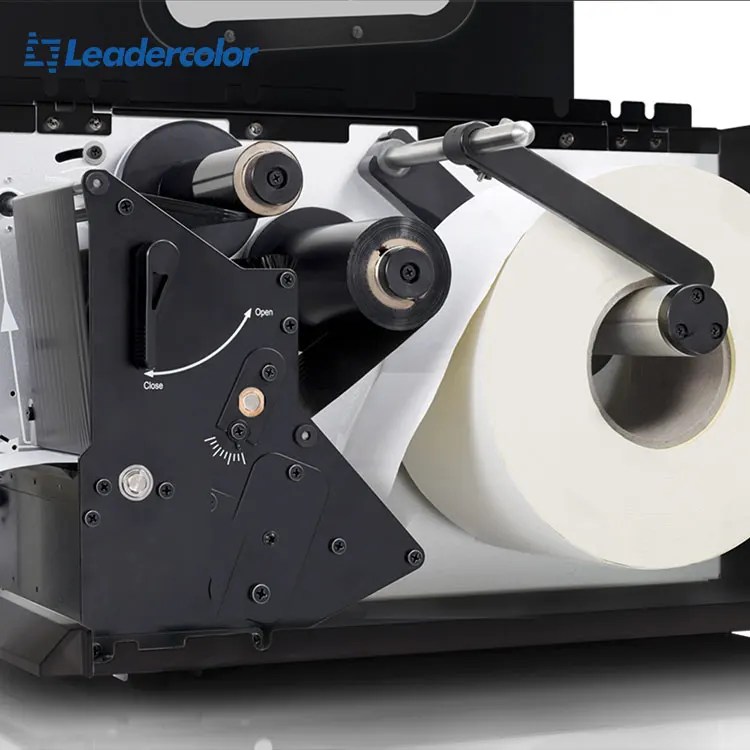

TXr Series RFID Label Printer
TXr Series RFID Label Printer
Short Description:
Item No.:TX2R/TX3R/TX6R
Quick Details
The innovative structural design and utility functions of RFID printing technologies make the TXr Series printer an outstanding choice for RFID printing solutions, allowing great productivity and convenience increase for various UHF RFID printing needs.
Original RFID antenna technique that’s Reading/Writing RFID tags after printing, helps you to recognize every single bad label, which provides a reliable solution for automatic sorting process or system. And it offers high compatibility, brilliant print quality in a variety of tags with a minimum inlay space of 12mm or attachable to metal objects that refers to RFID anti-metal tags, which can cover a broad range of printing needs and helps your business save on related cost.
TXr Series RFID Label Printer
Model | TX2r | TX3r | TX6r |
Printing Method | Thermal Transfer | ||
Printing ReSolution | 203 dpi | 300 dpi | 600 dpi |
Max Printing Speed | 12 ips (304.8 mm/s) | 10 ips (254 mm/s) | 6 ips (152.4 mm/s) |
Max Printing Width | 4.09″ (104 mm) | 4.17″ (106 mm) | 4.17″ (106 mm) |
Max Printing Length | 157″ (4000 mm) | 79″ (2000 mm) | 19.6″ (500 mm) |
HEAT™ Level | II | I | I |
RFID | Integrated UHF Reader/Encoder, EPC Gen 2 Class 1/ 1SO 18000-6C | ||
Memory | 8 MB FLASH ROM, 16 MB SDRAM | ||
Media | Width: 4.56″ (116 mm) max OD: 8″ (203.2 mm) max. | Width: 4.56″ (116 mm) max. | |
Media Thickness | 0.0024″(0.06 mm) ~ 0.012″(0.305 mm), including liner On-metal Version: 0.047″(1.2 mm) max., including liner. | ||
Ribbon | Ribbon roll: OD: 3.3″ (84 mm) max., ID: 1 (25.4 mm) min. | ||
Media SenSor | Up&Down Reflective (Adjustable) / Transmissive (Adjustable) | ||
Fonts | Five built-in dot matrix ASC11 fonts, Downloadable TrueType Fonts | ||
Bar Code TypeS | ID Barcode: Code 39, Code 93, Code 128/subset A, B, C, Codabar, | ||
Interfaces | RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB HOST, Centronics | ||
LCD Display | Graphic Dot Matrix | ||
Power Rating | 110/220 VAC ±10%, 50/60Hz | ||
Weight | 15 kgs | ||
Dimensions | W 11.3″ (287 mm) x D 17.6″ (448 mm) x 10.6″ (270 mm) | ||
Operating Environment | Temperature: 32 to +104 (0 – 40 ) Relative humidity: 5% – 85% non condensing | ||
Storage EnVironment | Temperature: -40 to +140 (-40 – 60 ) Relative humidity: 5% – 85% non condensing | ||
Optional Items | External Rewinder, Rotary Cutter | ||
* HEAT™, Heating Equilibrium Adaptive Tuning, newly developed by POSTEK, is a cutting edge technology in heating control of thermal print-heads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed. The HEAT™ level represents the fineness of the heating uniformity with level I being the finest.
* All specifications are subject to change without notice.
We are original equipment manufacturer in RFID reader for over 12 years.
Our RFID reader MOQ is 1pc, RFID tag MOQ is 100pcs.
T/T , Western Union , Paypal , Alibaba trade assurance.
All our product have 1 year warranty if no human caused.
3.Yes, most our technical information have upload to our website: www.leadercolor.com , you can download it directly from website ,also you can contact our oversea salesman send to you.
