LDR-10225 UHF RFID Windshield Tag
LDR-10225 UHF RFID Windshield Tag
Short Description:
Item No.:LDR-10225
Quick Details
Leadercolor LDR-10225 UHF RFID Windshield Tag is designed in RFID technology with chip and inlay inside. It is mainly used for automatic vehicle identification system and auto glass retail management. Shape of label, long reading range over 10meters, waterproof and tamper proof which makes it an high end product in access control.
Applications
1. Vehicle access control, Toll collection, Electronic vehicle registration or parking, Security access, Car wash project
2. Fleet management
3. Auto Glass Retail Management
UHF RFID Windshield Tag
| RFID Parameter | |
| Model No. | LDR-10225 |
| Type | Passive UHF RFID Label |
| Protocol | ISO/IEC 18000-6C, EPC Class1 Gen2 |
| Frequency | Worldwide 840-960Mhz, US 902-928mhz, EU 865-868Mhz |
| Chip | Alien H9（Customized） |
| Memory | EPC 96Bits / TID 48Bits / User 688Bits |
| Read&Write | Supported |
| Read Range | 1-15meters adjustable(reader and environment dependent) |
| Data retention | 10years |
| Programming Cycles | 100,000 cycles |
| Anti-collision | Support multiple tags reading |
| Physical Parameter | |

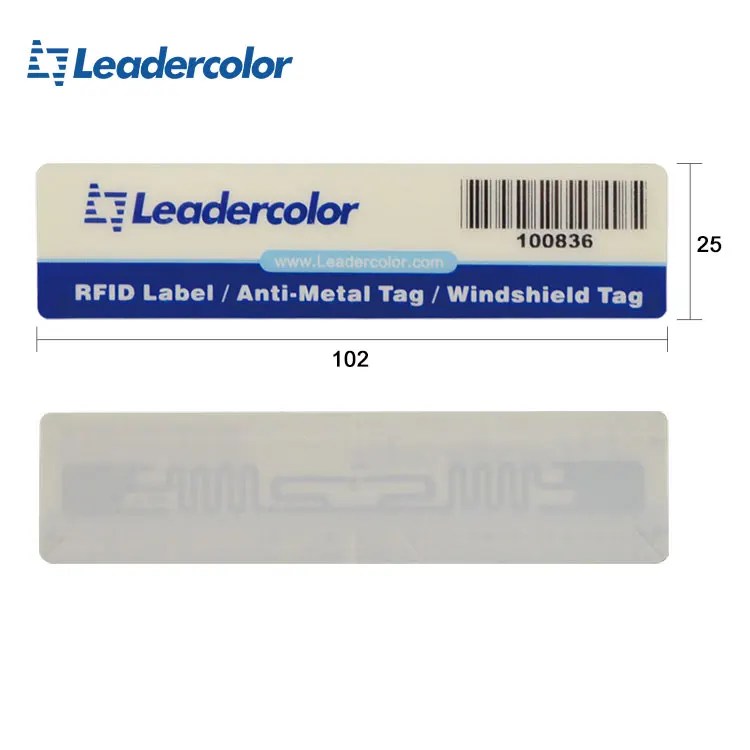

| Size | 102x25mm |
| Substrate Material | Transparent Release Film (Customized) |
| Antenna Material | Aluminum Etching |
| Surface Material | PET Waterproof (Customized) |
| Installation | Self adhesive |
| Operating temperature | -25℃ ~ +65℃ |
| Operating humidity | 20% ~ 90%RH |
| Printing | Offset printing, barcode, series number and logo printing |
| Encode | Supported |
| Tamper Proof | Yes |
| Strong Glue | Yes |
| Installation | Self adhesive |
| Operating Temperature | -50℃ ~ +85℃ |
| Operating Humidity | 20% ~ 90%RH |
| Package | Roll / Single（Customized） |
Yes, the size can be customized according to customer’s requirement, and indifferent length and width.
Yes, we are so glad to send you some current samples for your reference. The samples are free, you just need to handle the delivery cost.
Yes, you can choose the material and chip what you want.
Our minimum order is 500~1000pcs.
Yes, please send the files in “AI.”or “CDR” format with “greate outlines” to us by email.
The fact is that the colors shown on the monitor we saw and the color printed in actual products have differences. For the best quality effect, you may provide us a match sample or the specify Pantone colors. We match the colour over 90% which is much more above the industry average of 80%
It depends on the shipping method chose, the white tag, Normally, the tags will be sent out within 7~15 days after payment is completed.
The trade assurance order is recommended. Alibaba platform will protect your orders from payment to delivery, or by T/T, Paypal and so on.
Yes, we provide quality assurance for 1 years, except the physical damage.
